Master GPS Lock GL800
Product Functions
|
Type |
Description |
|
Transmission Mode |
TCP / SMS |
|
Data Automatic Upload |
Time interval / Event interval |
|
Locating Mode |
GPS / Beidou / GLONASS / Galileo / QZSS / NavIC / LBS includes stationary filtering logic to eliminate GPS drift |
|
Vibration Detecting |
Built in Three-axis acceleration sensor for vibration detecting |
|
Attached On Container Detecting |
Light sensor 1 for validate E-Seal is correctly attached on container before arming and disarming |
|
Container Vertical Direction Detection |
Built in Three-axis acceleration sensor for Container vertical direction detection |
|
SIM Card Back Cover Open Detection |
Detect whether SIM Card Back Cover opened or not |
|
Lock Body Open Detection |
Light Sensor 2 & 3 Build-in lock body PCB side and Lock cylinder compartment Check if the front and back covers of the lock body are opened |
|
OTA |
Support Over-The-Air (OTA) commands |
|
Blind Zone Data |
102,400pcs Blind spot data / 2,800pcs event data |
|
Data Encryption |
Blockchain & encrypted command supported |
|
Lock Status Monitoring |
Real Time Monitoring/Power Saving Mode Monitoring Multiple working modes |
|
Unlock |
RFID tags, Remote password by TCP/SMS/Bluetooth |
|
Wake Up Mode |
Call / SMS / Swiping card / Vibration / Lock-string tamper / Back cover open |
|
Real Time Position |
Query current location by SMS command |
|
Unlock By Password |
Unlock the device by Password (GPRS/SMS) |
|
Unlock By RFID Key |
Unlock the device by authorized RFID keys |
|
Locked Automatically |
The device will automatically lock when the lock rope is inserted |
|
GSM Automatic Closure In Restricted Area |
Automatically turn off all inbuilt wireless transceivers when located in a designated zone with no wireless transmission as per safety requirement compliance |
|
Authorized RFID keys |
Unlock the device by authorized 200pcs RFID keys(Support for extended customization) |
|
Protocol |
JSON format / JT808 format / Mobicom format |
|
Dual SIM Card |
Support automatic switching between dual SIM cards |
|
Lock and Unlock Report |
The way to lock or unlock, unlock by Password or RFID key, report time, locked /unlocked successful or failed E1.Unlock by Password E2.Unlock by RFID E3.Unlock by BLE E4.Unlock by SMS |
|
Alarm |
A1.Enter fence alarm |
|
A2.Exit fence alarm |
|
|
A3.Lock Rope cut alarm |
|
|
A4.Vandalism alarm |
|
|
A5.long-time unlocking alarm |
|
|
A6.Wrong password alarm |
|
|
A7.Swipe illegal RFID card alarm |
|
|
A8.Low battery alarm |
|
|
A9.Back cover opened alarm |
|
|
A10.Motor stuck alarm |
|
|
A11.Standard Still alarm |
|
|
A12.Accident event alarm |
|
|
A13.Slave lock timeout alarm |
|
|
The Master lock version supports uploading 16 alarm events from the Slave-locks. |
Specifications
|
Name |
Parameter |
|
Padlock Size |

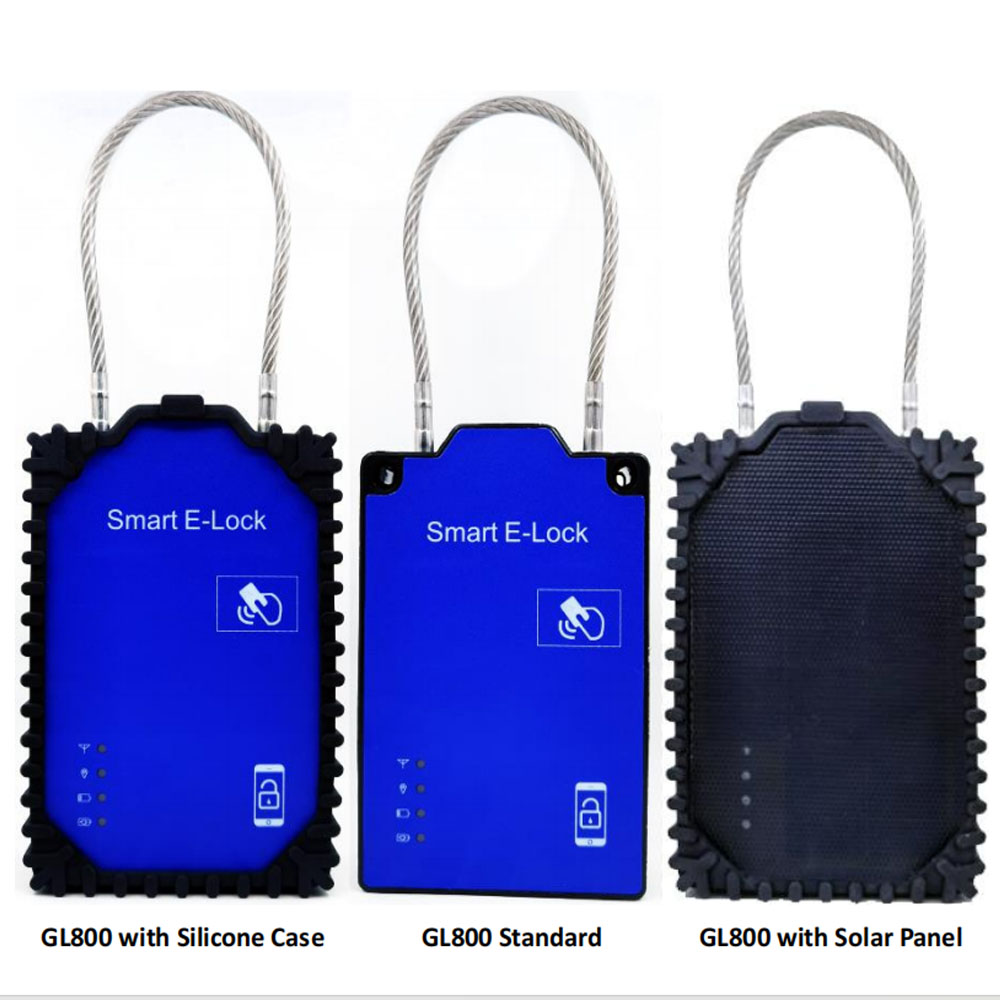

GL800:41*101*169 mm GL800S(With Solar Panel): 44*101*169 mm |
|
Weight |
Lock weight 580g(No magnet, no adhesive backing, 10000mAh battery) Lock weight 850g (Two strong magnets, with silicone backing, 20000mAh battery) Total package 1.2kg (With soft lock rope) Total package1.3kg (With hard lock hook) Silicone Case 0.2kg (Optional) Solar panel 0.1kg (Optional) |
|
Brown Box Dimension |
16.5cm x 11.5cm x 4.5cm |
|
Carton Dimensions |
43cm x 38cm x 30cm |
|
Units per Export Carton |
20 |
|
Tracker Unit Color |
Black |
|
Charging Port |
5V USB TypeC |
|
Working Current |
Sleep/Idle 0.1mAh,2G 66mAh,4G 75mAh (upload interval 1 mins) |
|
Battery |
Built-in 4*5000mAh 21700 Li-ion cell.Total 20000mAh Cycle charging more than 1000 times Power saving mode: > 45 Days |
|
Built-in 4*6000mAh 21700 Li-ion cell.Total 24000mAh (Optional) Cycle charging more than 1000 times Power saving mode: > 60 Days |
|
|
Solar Panel Charging |
2.3W 50-300mA (Optional) 80g |
|
Silicone Case |
10mm (Optional) 160g |
|
Material |
Lock body: Nylon + glass fibre + PC Lock cylinder: POM Lock rope: Stainless steel |
|
Strong Magnet |
2pcs 32mm N52 Strong magnet Standard,Vertical pull>70KG 3pcs 32mm N52 Strong magnet (Optional) Vertical pull >100KG |
|
Dual SIM Card Slot |
Support automatic switching between dual SIM cards |
|
Flash Memory |
128Mb |
|
Static RAM |
128KB |
|
G-Sensor |
Build-in (For Vibration and container vertical direction detection) |
|
Light Sensor1 |
Build-in at the rear of the lock body (validate E-Seal is correctly attached on container before arming and disarming) |
|
Light Sensor 2&3(Optional) |
Build-in lock body PCB side and Lock cylinder compartment Check if the front and back covers of the lock body are opened |
|
Tamper Switch Sensor |
Detect whether SIMcard Back Cover opened or not |
|
Working Temperature |
-25℃ -- 82℃ |
|
Store Temperature |
-40°C -- +85°C |
|
Humidity |
5%—99% (Non-water vapor condensation state) |
|
Waterproof |
IP67 |
|
GSM Module |
2G Version Quectel M26 GSM 900/1800/1900/850Mhz |
|
4G Version Quectel EC200A-AU (Australia/Latin America Default) 4G LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD:B40 2G GSM:B2/B3/B5/B8 |
|
|
4G Version Quectel EC200A-EU(Europe/Asia Pacific) 4G LTE FDD:B1/B3/B5/B7/B8/B20/B28 TDD:B38/B40/B41 3G WCDMA:B1/B5/B8 2G GSM:B3/B8 Regional roaming SIM supported |
|
|
GPS Module |
GOTOP GT-1110F2L-AGBD receive signals more than five satellites Features n Build on high performance, low-power MediaTek AG3352Q chip set n Ultra high track sensitivity: -165dBm n Concurrent reception of single-band and dual-system satellite signals n Supports all civil GNSS signals GPS/GLONASS/Galileo/BeiDou(BDS)/QZSS/NavIC n Supports BDS-3 signal n Extremely fast TTFF at low signal level (Cold start ≤60s, Hot start ≤5s) n Multi path detection and suppression n Works with passive and active antenna n Low power consumption: 11mA@3.3V n NMEA-0183 compliant protocol or custom protocol n Operating voltage:2.8V to 3.6V n SMD type with stamp holes n Small form factor: 10.1x9.7x2.2mm n Operating temperature -40 ~ +85ºC n RoHS compliant (Lead-free) |
|
BLE Module: |
BLE 5.2 (Standard) |
|
RFID Reader: |
13.56Mhz NFC |
|
LED Indicator Light |
GSM-Red led :Cellular network connection Status GPS-Green led: GPS fix Status Battery-Yellow led: Low Battery Status Charge-Red led: Charging or Charging full Status |
|
Padlock Material |
Shell: Hardened Plastic Soft Rope/Hard Hook: 304 Stainless steels |
|
Lock Rope Tension |
>200KG |
|
Access Port |
Micro USB |
