GPS Tracker G109

The G109 4G LTE Cat1 version is a IP67 waterproof Mini GPS tracker designed for a wide used for truck, car and motorcycle tracking application. It has the standard features of tracking such as real time position, cut off engine remotely and detect car/motorcycle engine status. The G109-6pin version has three outputs, and the two outputs can control the buzzer and flashing lights, which is convenient for finding cars/motorcycle in the parking lot.

ꄲNext： null

Product Functions

Items	Functions
Communication	Location Data transmitting- Cellular network (TCP/UDP)
Communication	Commands- Cellular network/Serial port
Position Tracking	Real time location monitoring/querying
	Track by moving (time interval)
	Track by parking (time interval)
	Track by distance
	Cornering report
GPS Mileage	GPS Mileage report/GPS mileage coefficient adjustable
Alarm (Event)	Main power supply cut off
	Ignition on/off report
	Over Speed alarm
	Towing alarm
	Theft alarm
	Vibration alarm
	Geo-fence alarm
	Harsh Braking alarm
	Harsh Acceleration alarm

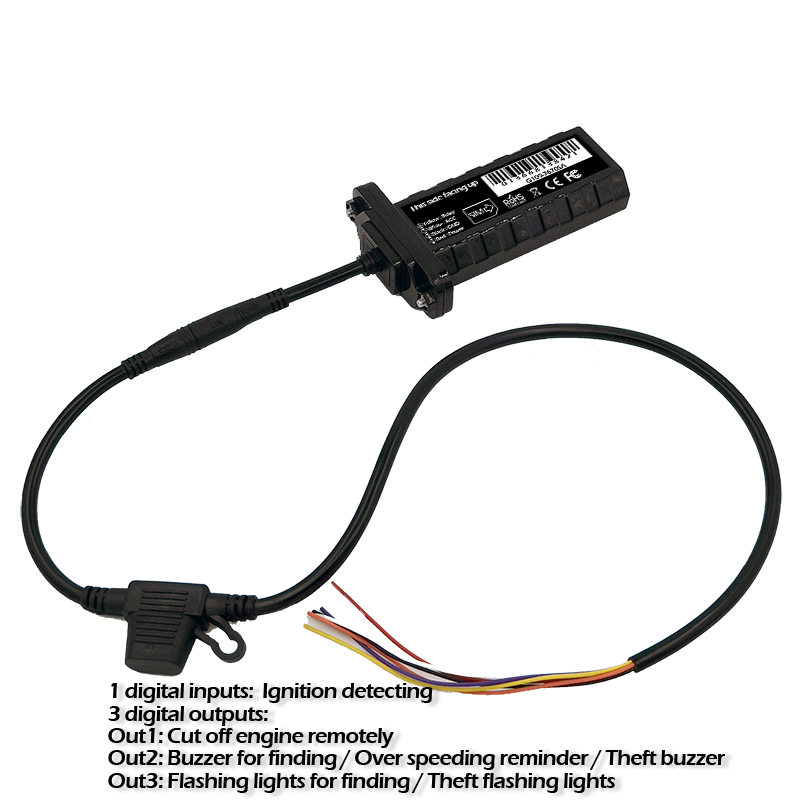

I/O	1 digital inputs: Ignition detecting 3 digital outputs: Out1: Cut off engine remotely Out2: Buzzer for finding / Over speeding reminder / Theft buzzer Out3: Flashing lights for finding / Theft flashing lights
Buffer	Data in Buffer when in Cellular network blind area
Initialization	Initialize tracker’s Parameters via CELLULAR NETWORK/Serial port
Upgrading	upgrading firmware via OTA or Serial port
Waterproof	IP67

Specifications

Items	Specifications
Gift Box Dimension	1228032mm
Tracker Dimension	924018 mm
Tracker Color	Black
Tracker weight	Net weight: 60g, Total package:105g
Power Supply	Power Supply: DC 9V - 100V
Working current	<40 mA (12V)
Sleep current:	<3mA
Operating Temperature	-20℃-80℃
Operating humidity	5% - 95% non-condensing
Back-up battery	Built-in 110mAh, support 3 hours working
LED indicator	3 LED lights, green for GPS status, red for network status
Motion sensor	3D acceleration sensor
Power Switch	Physical switch
I/O Port	1 digital inputs: Ignition detecting (positive trigger)
I/O Port	2 digital outputs: Out1: Cut off engine remotely Out2(Optional): Buzzer for finding / Over speeding reminder / Theft buzzer Out3(Optional): Flashing lights for finding / Theft flashing lights The 4pin model has only one output(out1), The 6pin model has three outputs (Out1, Out2, Out3)
4G Cellular Module	G109-7670C 4G LTE TDD: B34/B38/B39/B40/B41 FDD: B1/B3/B5/B8 China/Southeast Asia/India/Indonesia
	G109-7670E 4G LTE FDD: B1/B3/B5/B7/B8/B20 2G GSM/GPRS/EDGE: 900/1800 MHz Southeast Asia: Indonesia, India, Thailand, Laos, Malaysia, Singapore, Korea, Vietnam, etc West Asia: Saudi Arabia, lran, Qatar, UAE, Dubai, etc Europe: France, UK, Italy, Belgium, Netherlands, Spain, Russia, Ukraine, Turkey, etc Africa: South Africa, Nigeria, Egypt, etc
	G109-7670SA 4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 2G GSM/GPRS/EDGE: 850/900/1800/1900MHz South America: Brazil, Argentina, Chile, Peru, Colombia, etc. Oceania: Australia, New Zealand, etc. North America: Canada, USA, Mexico
GNSS Module	Support satellites: GPS、GLONASS、BeiDou 、QZSS Positioning accuracy: < 2m CEP TTFF @ -130 dBm (AGNSS Enable): Cold start time: < 5.5s Warm start time: < 2s TTFF @ -130 dBm (AGNSS Disable): Cold start time: < 30s Warm start time: < 2s
