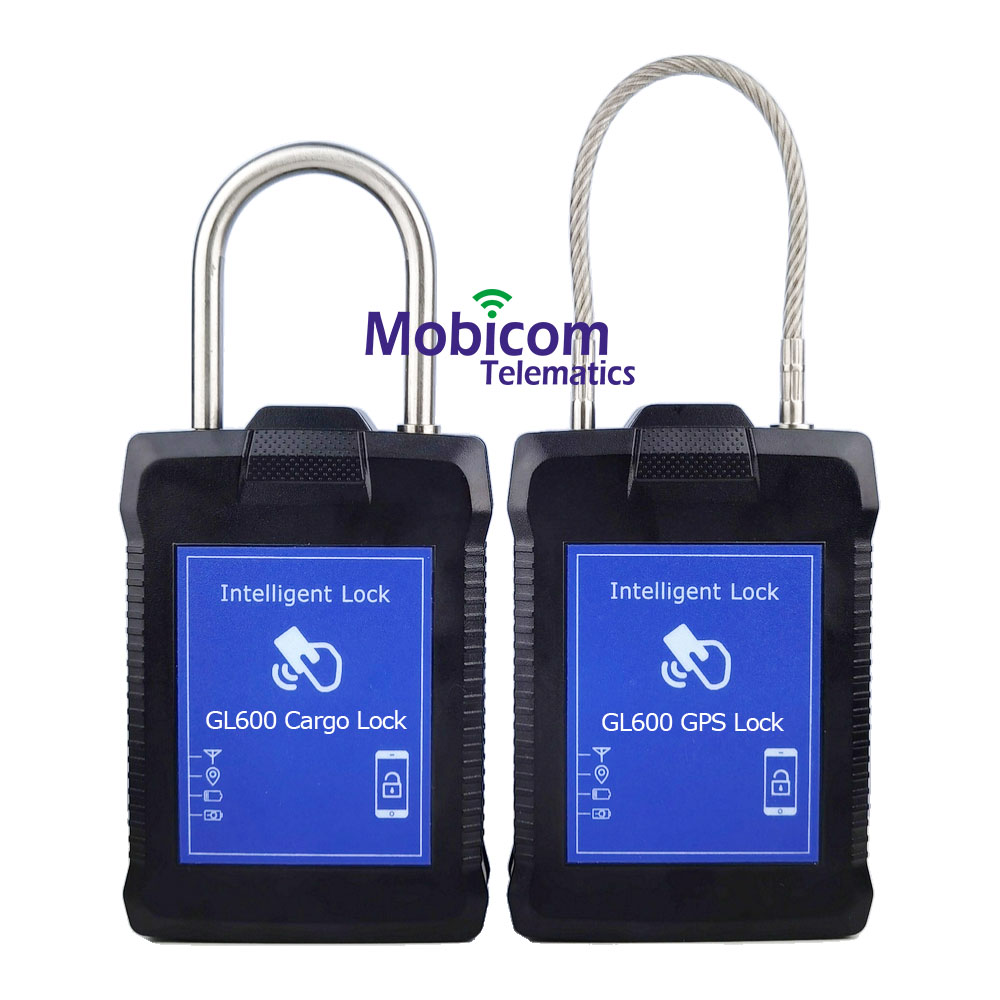

GPS Lock/GPS Padlock/ GL600
Product Functions
|
Hardware/ Firmware |
Main Functions |
Description |
|
Hardware |
2G/3G/4G cellular network |
5G customizable |
|
GPS+LBS Positioning |
LBS info. (CELL ID and LAC) |
|
|
Dual SIM cards |
It can be installed with two Micro SIM cards and supports the dual SIM single standby mode. The device will automatically select a SIM card to register the network. |
|
|
Build in 10400mAH Rechargeable 18650 lithium battery |
Customizable |
|
|
Build in 3 Axis acceleration sensor |
Motion or vibration detecting |
|
|
Buzzer and LED indicators reminder |
Different device Status Buzzer and LED indicator reminder |
|
|
Charger |
5V DC -2A charging |
|
|
Bluetooth |
Unlocking via APP or Download historical Track data through Bluetooth (replace serial port) |
|
|
Firmware |
Real time Position querying |
Query current location by SMS command |
|
Unlock by Password |
Unlock the device by Password (GPRS/SMS) |
|
|
Unlock device by authorized RFID key |
Unlock the device by authorized RFID keys |
|
|
Locked automatically |
The device will automatically lock when the lock rope is inserted |
|
|
50 authorized RFID keys |
Unlock the device by authorized RFID keys |
|
|
Polygon Geo-fence |
10 Polygon Geo-fences |
|
|
5 Authorized Phone Numbers |
Receiving short message alert or command response and sending command |
|
|
Supports 9 alerts |
Lock rope tamper, Swiping unauthorized RFID key, Unlocking, Wrong password, Vibration, Enter Geo-fence, Exit Geo-fence, Low battery, Back Cover Opened, Motor Fault |
|
|
Lock and Unlock Report |
The way to lock or unlock, unlock by Password or RFID key, report time, locked /unlocked successful or failed |
|
|
Wake up source
|
Vibration, RFID Key Reading, Back Cover Opened, Lock rope inserted and unplugging, Sleep and timing wake up (RTC) |
|
|
FOTA |
Firmware upgrading via OTA |
Specifications
|
Name |
Parameter |
|
Padlock size |
46*111*251 mm |
|
Weight |
Lock weight 0.8KG Total package 1.1kg (35cm soft lock rope) Total package1.2kg (hard lock hook) |
|
Brown Box Dimension |
16.5cm x 11.5cm x 4.5cm |
|
Carton Dimensions |
43cm x 38cm x 30cm |
|
Units per Export Carton |
20 |
|
Tracker unit Color |
Black |
|
Working voltage |
5V DC |
|
Working current |
Sleep/Idle 0.1mAh,2G 66mAh,4G 75mAh (upload interval 1 mins)
|
|
Back-up battery |
Built-in 4*2600mAh 18650 Li-ion cell.Total 10400mAh |
|
Flash memory |
4096KB |
|
Static RAM |
128KB |
|
Blind zone data |
28000pcs Position Alert Data & 2400pcs Lock/Unlock Events Data |
|
G-sensor |
Build-in |
|
Working temperature |
-20℃ -- 82℃ |
|
Moisture |
5% -- 95% (Non-water vapor condensation state) |
|
Frequency Band |
2G Version Quectel M26 GSM 900/1800/1900/850Mhz |
|
4G Version Quectel EC200AAU 4G: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD B40 3G: WCDMA B1/B2/B4/B5/B8 2G: GSM/EDGE B2/B3/B5/B8 |
|
|
GPS Module |
ZKMicro GPS L1 C/A: 1575.42 MHz GLONASS L1: 1602 MHz BeiDou B1: 1561.098 MHz |
|
BLE Module: |
BLE 4.2 (Standard) |
|
RFID reader: |
125K Hz ID card reader |
|
LED indicator light |
GSM-Red led :Cellular network connection Status GPS-Green led: GPS fix Status Battery-Yellow led: Low Battery Status Charge-Red led: Charging or Charging full Status |
|
Padlock Material |
Shell: Hardened Plastic Shackle: 304 Stainless steels |
|
Access port |
Micro USB |
